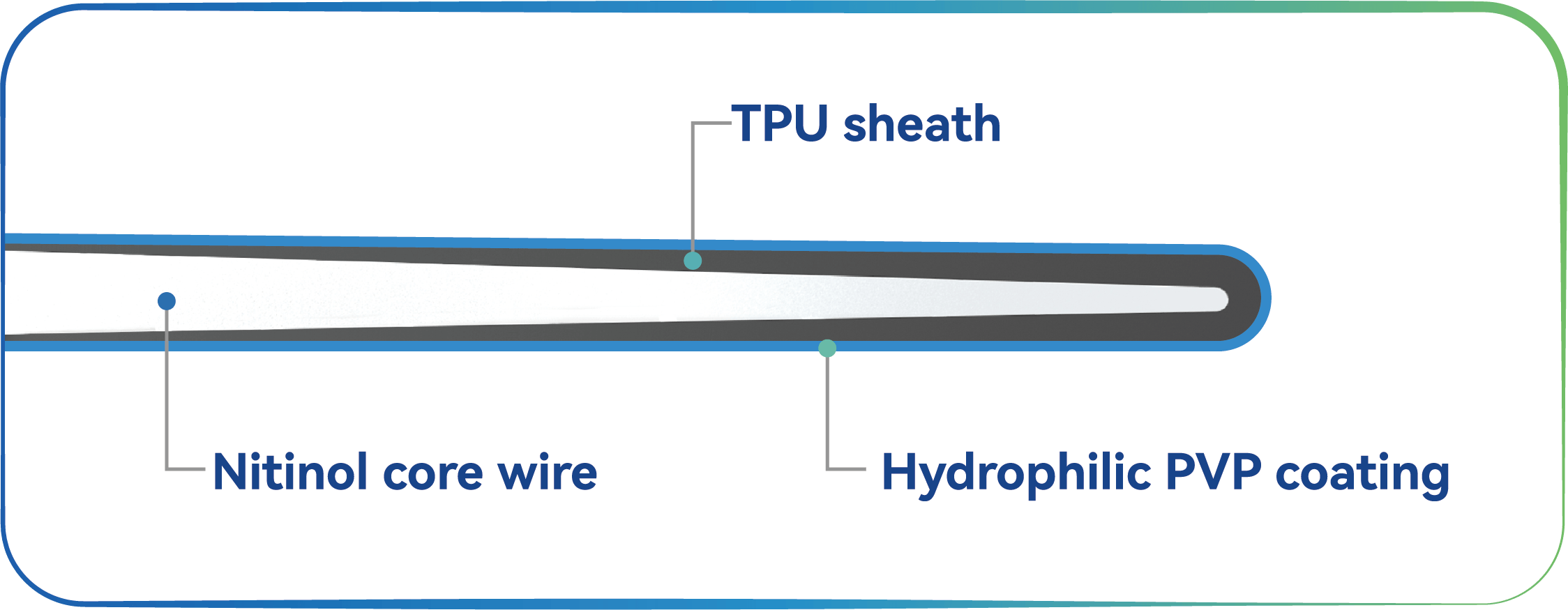

A tapered core combined with a thickening outer TPU jacket—while maintaining a constant outer diameter—creates a soft, flexible tip with precise 1:1 torque response.
Coated with a proprietary hydrophilic layer to deliver ultra-low friction, enabling smooth and effortless navigation through anatomical pathways.
Offers high rotational stiffness, delivering excellent maneuverability and kink resistance.
This non-vascular hydrophilic guidewire is engineered for use under endoscopy, providing excellent support and directional control for the introduction of diagnostic or therapeutic instruments into non-vascular anatomical pathways.

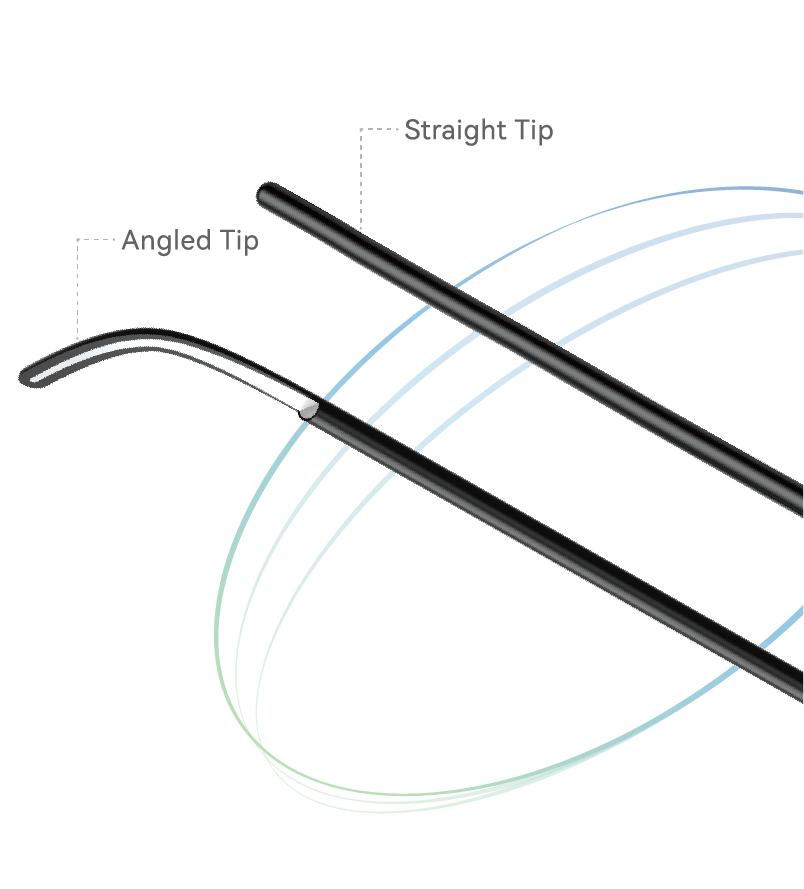

| Model | Diameter (inch) | Length (cm) | Tip Type | Tapered Core/Angled Length (cm) |
| NGW-021150 | 0.021 | 150 | Straight(S)Angled(A) | 3 |
| NGW-021300 | 0.021 | 300 | ||
| NGW-021450 | 0.021 | 450 | ||
| NGW-025150 | 0.025 | 150 | ||
| NGW-025300 | 0.025 | 300 | ||
| NGW-025450 | 0.025 | 450 | ||
| NGW-028150 | 0.028 | 150 | ||
| NGW-028300 | 0.028 | 300 | ||
| NGW-028450 | 0.028 | 450 | ||
| NGW-030150 | 0.030 | 150 | ||
| NGW-030300 | 0.030 | 300 | ||
| NGW-030450 | 0.030 | 450 | ||
| NGW-035150 | 0.035 | 150 | ||
| NGW-035300 | 0.035 | 300 | ||
| NGW-035450 | 0.035 | 450 | ||
| NGW-038150 | 0.038 | 150 | ||
| NGW-038300 | 0.038 | 300 | ||
| NGW-038450 | 0.038 | 450 |
【 Materials 】
· Core: Metal wire (nitinol/stainless steel).
· Jacket: Polymer (TPU).
· Surface: Hydrophilic PVP-based coating.
· Customization: Length customizable.
【 Packaging & Sterilization 】
· Packaging: Individually packaged in a coiled sheath configuration using medical-grade paper-plastic pouches.
· Shelf Life: 36 months.
· Sterilization: Ethylene oxide sterilized, single-use only
